DC24V Electric Wheelchair Joystick Controller Remote Control Brush Motor Controller for Universal Electric Wheelchairs Mobility

Product Description

Features

Better for Control: Ensuring stable startup and high sensitivity, the joystick controller will have flexible control over the speed and direction.

Multiple Functions: Capable of slope parking, slope anti sliding, speeding protection, short circuit protection, battery output protection and more.

Smart in Operation: Using smart control algorithm and AI intelligent control operation system, the wheel chair joystick controller is very reliable.

Wide Compatibility: Allows for wide use on operating platforms for electric wheelchairs, intelligent robots, amusement devices, and mobile products.

For Stable Working: Mainly made of premium ABS material, the durable electric wheelchair controller enables gentle and stable working performance.

Specification

Item Type: Electric Wheelchair Joystick Controller

Power Supply Voltage: DC 24V

Working Voltage: DC 19V-32V

Peak Voltage: DC 35V

Output Current: 45A

Brake Voltage: DC 24V

Braking Current: Single channel 3A maximum.

Stationary Standby Current: ≤ 50 mA

Power Off Standby Current: 0.1 ± 0.05 mA

Working Temperature: -25℃ – +60℃

Storage Temperature: -45℃ – +80℃

Applicable Driving Motor Form: 24V DC Brush Motor

Function: Electromagnetic brake motor, capable of slope parking, slope anti sliding, speeding protection, short circuit protection, battery output protection, temperature protection, charging suppression, connector detachment protection.

How to Use

Install to use.

Package List

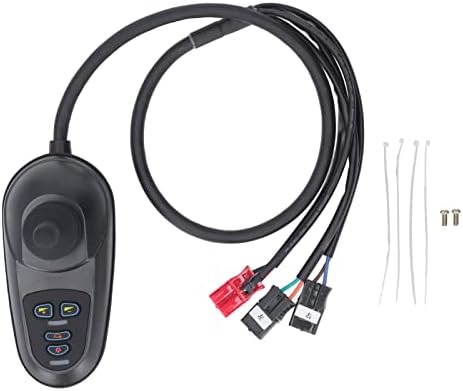

1 x Electric Wheelchair Joystick Controller

2 x Screw

4 x Cable Tie

Smart in Operation: Using smart control algorithm and AI intelligent control operation system, the wheel chair joystick controller very reliable.
Wide Compatibility: Allows for wide use on operating platforms for electric wheelchairs, intelligent robots, amusement devices, and mobile products.
Better for Control: Ensuring stable startup and high sensitivity, the joystick controller will have flexible control over the speed and direction.
Multiple Functions: Capable of slope parking, slope anti sliding, speeding protection, short circuit protection, battery output protection and more.
For Stable Working: Mainly made of premium ABS material, the electric wheelchair controller enables gentle and stable working performance.
