A18 Air Quality Monitor Indoor Co2 Meter Dust PM2.5 PM1 PM10 Particle Counter HCHO Formaldehyde TVOC Detector AQI Pollution Tester Home with Data Record

Price: $209.99
(as of Jun 12, 2024 06:27:28 UTC – Details)

Product Description

Checking the air quality in your home

Fine dust level – Laser particle sensor to accurately distinguish 0.3 fine particulate matter; Formaldehyde test – Electrochemical HCHO sensor to resolve 0.001mg/m3 of free formaldehyde molecules; TVOC test – Semiconductor TVOC total volatile organic compounds sensor can measure a variety of chemistry pollution such as benzene, toluene. CO2 level – NDIR non-spectral infrared principle CO2 sensor to accurately detect indoor carbon dioxide concentration. Self -calibration – TVOC , HCHO, CO2 Automatic calibration

Instructions for Use:

TF memory card can record air quality test data of PM1.0, PM2.5, PM10, CO2, TVOC, HCHO, particles numbers 0.3 0.5 1.0 2.5 5.0 10For Initial use, place the device in a well-ventilated environment for 8hrs before useWhen you use the BR-A air quality monitor, please shut it down regularly.If the TF memory card is full, please replace it with a new card in time. Otherwise, there may be a sudden automatic shutdown of the machine.

Fault description:

The machine suddenly shut down by itself, or plug it in and it won’t charge, try the following steps to rectify the fault:

Take out the TF memory card on the back of the machineAfter power off, connect the charger to charge for more than 6 hours and then turn it on without the TF memory card to see if it can work.

6-channel Particle Number

6-channel particle high precision laser sensor, laser particle counter

PM0.3 PM0.5 PM1.0PM2.5PM5.0PM10

Ambient Air Quality Assessment AQI

AQI Air quality alarm threshold:

PM2.5: 0-12μg/m³ GoodPM10: 0-54μg/m³ GoodCO2: 400-700ppm GoodTVOC: 0-5.0mg/m³ GoodHCHO: 0-0.1mg/m³ Good

One-button quick boot

Automatic air quality detection at startup3.5-inch TFT color screen displayScreen sensitivity adjustmentReal-time air quality data curve trendair quality Continuous measurementair quality logger

48MHZ high frequency processing speed

More sensitive measurementFaster algorithm responseHigh frequency data processing speed

Active air interaction system

3-way circular air convectionincreases contact area with the air sensor low noise

12-bit AD signal amplifier chip

Accurately distinguish tiny current signalsconvert the NA-level current amplification acquisition into a digital signalaccurately measure air pollutant concentration

Particulate Matter

PM stands for particulate matter (also called particle pollution): the term for a mixture of solid particles and liquid droplets found in the air. Some particles, such as dust, dirt, soot, or smoke, are large or dark enough to be seen with the naked eye. Others are so small they can only be detected using an electron microscope.

Particle pollution includes:

PM10 : inhalable particles, with diameters that are generally 10 micrometers and smallerPM2.5 : fine inhalable particles, with diameters that are generally 2.5 micrometers and smaller.

CO2 Carbon dioxide

Carbon dioxide is a common greenhouse gas or a component of the air (accounting for 0.03% -0.04% of the total atmospheric volume). When the concentration of carbon dioxide in the air exceeds a certain limit, it will Poisoning the body.

Mild: General discomfort such as dizziness, headache, muscle weakness, general soreness, etc.

TVOC Total Volatile Organic Compounds

TVOC is one of the three types that affect indoor air quality more seriously.

Classification: Benzene, alkanes, aromatic hydrocarbons, alkenes, halogenated hydrocarbons, esters, aldehydes, ketones and others.Indoors, mainly from combustion products such as coal and natural gas, smoke from smoking, heating, and cooking, and adhesives, coatings, and paints in construction and decoration materials , Plate, wallpaper, etc., furniture, household appliances, furniture, detergents and human body emissions. There are nearly a thousand kinds.

HCHO Formaldehyde

Formaldehyde (HCHO) is a colorless, highly toxic, and flammable gas at room temperature. Formaldehyde is found in:

Resins used in the manufacture of composite wood productsBuilding materials and insulationHousehold products such as glues, permanent press fabrics, paints and coatings, lacquers and finishes, and paper productsPreservatives used in some medicines, cosmetics and other consumer products

A17

Add to Cart

Add to Cart

Price

$209.99$209.99 $179.99$179.99
—

PM1.0

✓

✓

✓

PM2.5

✓

✓

✓

PM10

✓

✓

✓

TVOC

✓

✓

HCHO

✓

✓

CO2

✓

✓

Particle number 0.3

✓

✓

✓

Particle number 0.5

✓

✓

✓

Particle number 5.0

✓

✓

✓

Data Storage & Export

✓

✓

✓

Indoor Air Quality Sensor

About battery and charging:

A18 has multiple built-in sensors, the power consumption is very high, please make sure to use a 2A adapter to charge it. Please do not use USB power supply, such a charging power is too small.In the power-on state, if the power of the adapter is too small, the charging speed will not keep up with the discharging speed when the machine is in use, and the machine will automatically shut down.If the machine shuts down automatically, please charge the machine for more than 6 hours in the shut down state before turning it on again.When the machine is turned on and used, it takes about 18 hours before the machine can be fully charged. So we generally recommend turning off and charging.

Regarding machine reading is high on first use

Reason: Because the packaging material itself contains interference gas, and it is sealed in the box for a long time, the charge attached to the surface of the sensor will increase, causing the value of the machine to be biased when it is turned on.Solution: After receiving the machine, put it in an outdoor clean and ventilated environment for about 8 hours, so that the charge can be released. (Charger can be connected to ensure the power supply)

Regarding the high TVOC level

Please check your measuring point if there are some human activities such as cooking, smoking, drinking or some chemical gases such as perfume, air freshener, detergent, etc. Then try to put the machine in an outdoor clean and ventilated environment for more than three hours to see if the machine value will drop.

PM PARTICULATE MATTER DETECT– Air pollution monitor can test indoor fine particles. 6-channel tiny particle number testing (Number of particles/liter)-laser particle counter 0.3μm, 0.5μm,1.0μm, 2.5μm, 5.0μm, 10μm; 3-channel particulate matters quality detection (μg/m³)–PM1.0 / PM2.5 / PM10
DATA LOGGER & EXPORT– Air quality meter has a 128M data memory card that support 10w + data records storage, data records can be exported to the computer in TXT file and analyze air quality changes in graphs

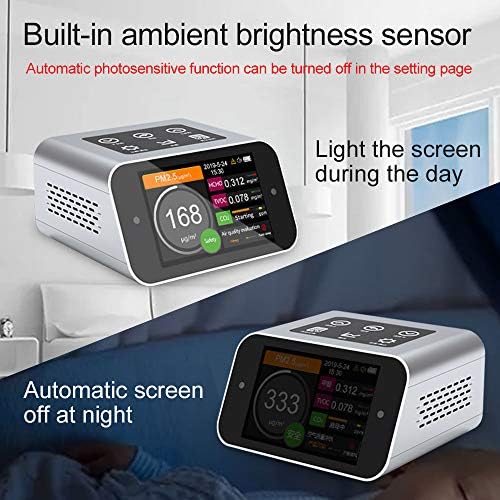

AUTOMATIC PHOTOSENSITIVE — BR-A air quality tester automatically turns off the screen according to the ambient brightness, creating a good sleeping environment, home allergen test pollen air dust testing kit
SENSORS SELF CALIBRATION –CO2 carbon dioxide Sensor adopts 72-hour automatic baseline calibration; HCHO sensor & TVOC VOCs sensors support automatic sensor calibration in the Settings interface
AIR QUALITY ALARM– Desktop air quality detector with touch button, automatic detection at start-up, drawing 24hrs air quality change curve; Comprehensive assessment of ambient air quality indicator, AQI air quality alarms base on US standards, keep track of the air quality around you at all times
Whether you are concerned about carbon dioxide levels, formaldehyde presence, volatile organic compounds (VOCs), cigarette smoke, or any other air pollutants, this all-in-one tester has got you covered. It detects and measures carbon dioxide, formaldehyde, and odor levels in your indoor space.
Detect and measure formaldehyde, cigarette smoke, CO2, VOCs, and other harmful substances in the air Ensure a healthy living environment by monitoring and removing formaldehyde and other pollutants, stay informed about the air quality in your home
BRWISSEN Desktop Air Quality Monitor, the perfect indoor home air tester for maintaining a healthy living environment. With its formaldehyde tester feature, this monitor ensures that you can effectively measure the levels of formaldehyde in your surroundings.
Our monitor doubles as a cigarette smoke detector, allowing you to keep track of the air quality in areas where smoking may occur. This feature is especially useful for homes with smokers or in establishments where smoking is permitted.
nvest in this reliable and efficient desktop air quality monitor and experience the peace of mind that comes with knowing your indoor air is clean, pure, and safe for you and your loved ones. Take control of your environment with our advanced air quality tester. 3000mAh Rechargeable battery operation, to use USB adapter charger
